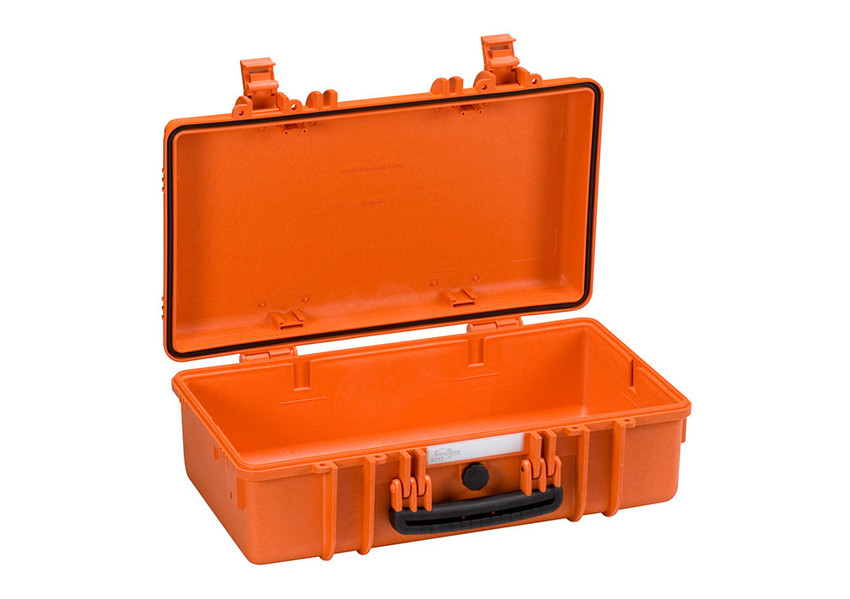

5117 OE Waterproof Case, Orange Empty

Copolymer polypropylene waterproof case
Orange Empty
Crush-proof medium-size cases with reinforced corners and ergonomic rubber handle. Lid can be set to slide off. Manual pressure release valve.

FEATURES

• Corrosion proof metal hinges with lid stay features
• Additional fixing points on the lid, available on certain models
• Internal slots for optional panel mounting brackets or panel mounting rings
• Jam free latches with easy-opening mechanism
• Lid can be set to slide-off when opened at 70 degrees
• Manual pressure release valve. The internal stop ring prevents valve from being completely extracted
• Optional shoulder strap (universal)
• PVC waterproof I.D. removable label
• Sealing O-ring
• Soft grip rubber handle, load tested, reinforced with corrosion proof steel pins

TECHNICAL SPECIFICATIONS

INTERNAL DIMENSIONS

• Length: 20 3/8 in
• Width: 10 7/8 in
• Depth: 6 13/16 in
• Lid: 1 15/16 in
• Base: 4 13/16 in

EXTERNAL DIMENSIONS

• Length: 21 1/2 in
• Width: 13 11/16 in
• Depth: 7 3/4 in

OTHER DATA

• Empty weight: 8.37 lbs
• Foam: 9.92 lbs
• Weight with brings rifles: 0 lbs
• Volume: 6.34 gal
• Buoyancy: 34.83 lbs/max
• Operating temperature: degrees F min -27.4 / max +194
