Description

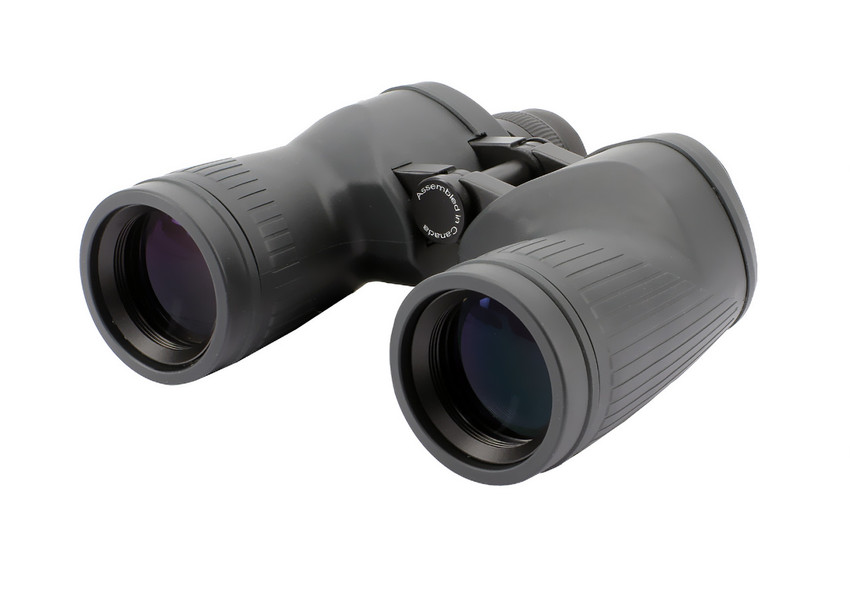

The AN 7x50M22 incorporates BAK-4 Porro prisms and multi-coated lenses, delivering impressive light transmission and resolution for brilliantly clear vision. Non-slip UV-resistant rubber armouring makes this unit comfortable to operate even in cold weather.
The AN 7x50M22 incorporates M22 reticles and is built to meet the needs of the most demanding professional operators. It is waterproof and shockproof and adheres to the latest military standards while remaining light and compact.
Features
- Crystal clear optics
- M22 Reticle
- Rugged design
- Extremely compact
Optics
- Magnification (x): 7
- Objective lens diameter (mm): 50
- Focus range (m): 5 - ?
- Exit pupil (mm): 7
- Eye relief (mm): 23
- Field of view - Angular (degree): 8
- Apparent field of view (degree): 56
- Field of view @ 1,000y (feet): 429
- Field of view @ 1,000m (metres): 131
- Diopter adjustment range: +/-5
- Twilight factor: 19
- Relative brightness: 49
- Transmission (%): 95
- Lens & prism coating: FMC
- Prism type: Porro
- Prism glass materia: BAK-4
- Reticle type: M22
Mechanics, Electronics & Environmental
- Interpupillary distance (mm): 56-74
- Weight (g): 1,363
- Dimensions (mm): 195x195x75
- Tripod mountable: Yes
- Operating temperature range (degrees C): -40 to +70
- Storage temperature range (degrees C): -45 to +75
- Nitrogen purged: Yes
- Waterproofing: MIL-STD-810G
